Hazet 7292-2STACCAL Electronic Torque Wrench with Built-In Angle Gauge, 20-200 Nm, 14x18mm Insert Square, 12.5mm (1/2") Square
General Information
Brand
Hazet
Part Number
7292-2STACCAL
Product Type
Torque
Application
For high-precision screw connections with torque/rotation angle calling for high accuracy or mandatory documentation, e.g. engine components especially cylinder head bolts, machine construction with increased requirements (including robot technology etc.)
What's Included
Including standard replaceable Li ion rechargeable battery, type 14650 / 3.7 Volt, can be charged directly on the tool via USB-C connector. Including 1 meter USB 3.1 / A-C cable.
Packaging
Retail
Country of Origin
Germany
UPC
4000896220397
California Residents
Proposition 65 Warning
Return Policy
NCNR - Non-Cancellable / Non-Returnable
Physical Characteristics
Length
520 mm
Weight
1.10 kg
2.43 lb
Details
Wrench Type
Torque
Size
Insert square 14 x 18 mm
Square, solid 12.5 mm (1/2 inch)
Square, solid 12.5 mm (1/2 inch)
Features

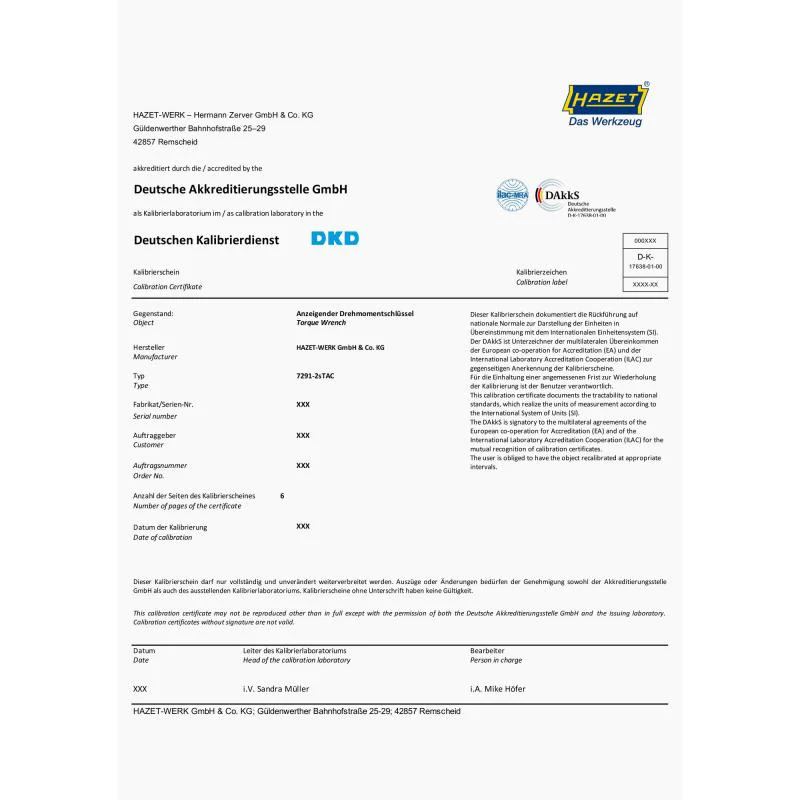

Torque wrench including DAkkS calibration certificate
With Bluetooth function
Tested in accordance with DIN EN ISO 6789-2:2017
Tolerance: 1 %
Effective torque wrench length min.-max. I1 mm: 464.00 – Nm
Actuating force min.-max. kg: 4.1 – 40.7 kg
Number of teeth: 32 (Opening angle 11.25°)
With Bluetooth function
Tested in accordance with DIN EN ISO 6789-2:2017
Tolerance: 1 %
Effective torque wrench length min.-max. I1 mm: 464.00 – Nm
Actuating force min.-max. kg: 4.1 – 40.7 kg
Number of teeth: 32 (Opening angle 11.25°)
Torque Range ft lbs
15 – 150 lbf.ft
Torque Range Nm
20 – 200 Nm
General Information
Brand
Hazet
Part Number
7292-2STACCAL
Product Type
Torque
Application
For high-precision screw connections with torque/rotation angle calling for high accuracy or mandatory documentation, e.g. engine components especially cylinder head bolts, machine construction with increased requirements (including robot technology etc.)
What's Included
Including standard replaceable Li ion rechargeable battery, type 14650 / 3.7 Volt, can be charged directly on the tool via USB-C connector. Including 1 meter USB 3.1 / A-C cable.
Packaging
Retail
Country of Origin
Germany
UPC
4000896220397
California Residents
Proposition 65 Warning
Return Policy
NCNR - Non-Cancellable / Non-Returnable
Physical Characteristics
Length
520 mm
Weight
1.10 kg
2.43 lb
Details
Wrench Type
Torque
Size
Insert square 14 x 18 mm
Square, solid 12.5 mm (1/2 inch)
Square, solid 12.5 mm (1/2 inch)
Features
Torque wrench including DAkkS calibration certificate
With Bluetooth function
Tested in accordance with DIN EN ISO 6789-2:2017
Tolerance: 1 %
Effective torque wrench length min.-max. I1 mm: 464.00 – Nm
Actuating force min.-max. kg: 4.1 – 40.7 kg
Number of teeth: 32 (Opening angle 11.25°)
With Bluetooth function
Tested in accordance with DIN EN ISO 6789-2:2017
Tolerance: 1 %
Effective torque wrench length min.-max. I1 mm: 464.00 – Nm
Actuating force min.-max. kg: 4.1 – 40.7 kg
Number of teeth: 32 (Opening angle 11.25°)
Torque Range ft lbs
15 – 150 lbf.ft
Torque Range Nm
20 – 200 Nm
$2,220.00
Original: $7,399.99
-70%Hazet 7292-2STACCAL Electronic Torque Wrench with Built-In Angle Gauge, 20-200 Nm, 14x18mm Insert Square, 12.5mm (1/2") Square—
$7,399.99
$2,220.00Description
General Information
Brand
Hazet
Part Number
7292-2STACCAL
Product Type
Torque
Application
For high-precision screw connections with torque/rotation angle calling for high accuracy or mandatory documentation, e.g. engine components especially cylinder head bolts, machine construction with increased requirements (including robot technology etc.)
What's Included
Including standard replaceable Li ion rechargeable battery, type 14650 / 3.7 Volt, can be charged directly on the tool via USB-C connector. Including 1 meter USB 3.1 / A-C cable.
Packaging
Retail
Country of Origin
Germany
UPC
4000896220397
California Residents
Proposition 65 Warning
Return Policy
NCNR - Non-Cancellable / Non-Returnable
Physical Characteristics
Length
520 mm
Weight
1.10 kg
2.43 lb
Details
Wrench Type
Torque
Size
Insert square 14 x 18 mm
Square, solid 12.5 mm (1/2 inch)
Square, solid 12.5 mm (1/2 inch)
Features
Torque wrench including DAkkS calibration certificate
With Bluetooth function
Tested in accordance with DIN EN ISO 6789-2:2017
Tolerance: 1 %
Effective torque wrench length min.-max. I1 mm: 464.00 – Nm
Actuating force min.-max. kg: 4.1 – 40.7 kg
Number of teeth: 32 (Opening angle 11.25°)
With Bluetooth function
Tested in accordance with DIN EN ISO 6789-2:2017
Tolerance: 1 %
Effective torque wrench length min.-max. I1 mm: 464.00 – Nm
Actuating force min.-max. kg: 4.1 – 40.7 kg
Number of teeth: 32 (Opening angle 11.25°)
Torque Range ft lbs
15 – 150 lbf.ft
Torque Range Nm
20 – 200 Nm
